Motorola Solutions

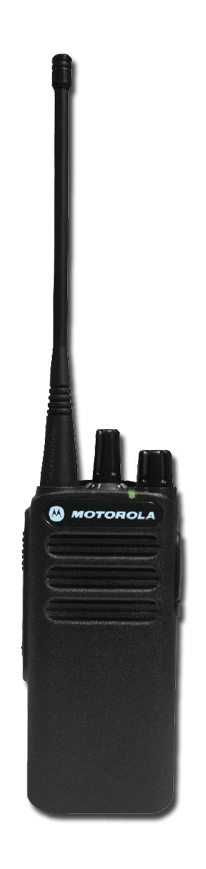

CP100d
The affordable CP100d radios offer all the benefits of digital technology – up to 35% longer talk-time, twice the voice capacity in a 12.5 kHz licensed channel, wider radio coverage, and superior audio. In digital mode, your MOTOTRBO radio provides clearer voice communications throughout the coverage area than analog radios, rejecting static and background noise.
Performance Characteristics
Frequency Band:
VHF, UHF
Frequency Range:
VHF (136-174 MHz); UHF (403-470 MHz)
Power Output:
VHF: 1-5 W, UHF: 1-4 W
Number of Channels/Groups/Zones:
Non Display: 16 Channels
Display: 160 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Analog: 10.7 hrs/Digital: 14.4 hrs
Channel spacing:
12.5, 25 kHz
Physical Characteristics
Dimensions H x W x D (with standard battery)
4.7 x 2.2 x 1.4 in (120.0 x 55.0 x 34.7 mm)
Weight (with standard battery)
Non-Display: 9.7 oz (276 g)
Display: 10.4 oz (295 g)
Keypad / Keys
Non-Display: None
Display: Limited
Display
User Environment
Operating temperature
-30°C / +60°C
Mil spec
810 D, 810 E
IP Standards
IP54
Key features
- Supports digital and analog communications
- UHF, VHF
- 16 channels (non-keypad), 160 channels (Limited and full keypad)
- 1 - 4.0 Watts (UHF) / 1 - 5.0 Watts (VHF) Output Power
- MIL-STD 810 & IP54-Rated Durability
- Dual Capacity Direct Mode
- Transmit Interrupt (Decode Only)
- Pre-Programmed Text Messaging
Easy to use, easy to migrate to digital
The CP100d Series is easy to use and makes it easy to migrate from analog to digital. Your radio users can operate and communicate on their new digital radios on the job, as your business transitions to digital technology. You can also choose the analog-only version of the CP100d radio and unlock the capabilities of digital when the time is right with a simple software upgrade. Now you can improve the efficiency of your operation with easy-to-use voice communication that’s right for you.
Experience MOTOTRBO digital voice communications, trusted by millions of users for exceptional voice quality and exceptional performance — meaning a more productive workforce and lower operating costs for your business.
Popular with these industries:
- Construction
- Education
- Healthcare
- Hospitality
- Manufacturing
- Property Management
- Sports
Brochures
Catalogs
Spec Sheets
UHF Antennas
 | PMAE4016 UHF Wideband Whip Antenna (403-520 MHz), 17 cm |
 | 8505816K24 UHF Heliflex Stubby (403-440 MHz), 9 cm |
| PMAE4002 UHF Stubby Antenna (403-433 MHz), 9 cm |
| PMAE4003 UHF Stubby Antenna (430-470 MHz), 9 cm |
 | NAE6522AR UHF Stubby Antenna (438-470 MHz), 9 cm |
VHF Antennas
| PMAD4014 VHF Whip Antenna (136-155 MHz), 14 cm |
| PMAD4042 VHF Heliflex Antenna (136-150.8 MHz), 14 cm |
| NAD6502AR VHF Heliflex Antenna (146-174 MHz), 15 cm |
| PMAD4012 VHF Stubby Antenna (136-155 MHz), 9 cm |
| HAD9742 VHF Stubby Antenna (146-162 MHz), 9 cm |
| HAD9743 VHF Stubby Antenna (162-174 MHz), 9 cm |
Motorola Original® Two-Way Radio Batteries
 | NNTN4851 NiMH 1400 mAh battery |
 | NNTN4970 Slim Li-ion 1600 mAh battery |
 | NNTN4497 High-Capacity Li-ion 2250 mAh battery |
 | PMNN4450 High-Capacity Li-ion 2800 mAh battery |
| PMNN4072 Mag One NiMH 1300 mAh battery |
 | PMNN4458 Mag One Li-ion 2050 mAh battery |
| RLN5383 Hard Leather Case with 3” Fixed Belt Loop and D-rings (non-display model) |
| RLN5384 Hard Leather Case with 2.5” Swivel Belt Loop and D-rings (non-display model) |
 | RLN5385 Hard Leather Case with 3” Swivel Belt Loop and D-rings (non-display model) |
| HLN9701 Nylon Case with 3” Fixed Belt Loop and D-rings (non-display model) |
 | RLN5644 Spring Action 2” Belt clip |
 | HLN8255 Spring Action 3” Belt clip |
| HLN8096 Accessory Clamp |
| 4280483B03 Replacement 2.5” Swivel Belt Loop |
| 4280483B04 Replacement 3” Swivel Belt Loop |
| RLN5716 Replacement T-Strap for leather cases |
 | NTN5243 Adjustable Nylon Carrying Strap |
 | RLN5500 Retainer Kit, provides additional protection when securing accessories to radio |
 | HLN9985 Waterproof Bag with large strap for securely carrying Motorola two-way radios |
 | HLN6602 Universal Chest Pack with radio holder, pen holder, and Velcro secured pouch |
 | RLN4570 Break-a-Way Chest Pack with Radio Holder Pen Holder and Velcro-Secured pouch |
 | RLN4815 Radio Pack Radio Utility Case |
 | TDN9327 Radio Hanger for vehicle door panels up to 2.75 inches |
 | TDN9373 Door Hanger for Radio and Vehicle door panels 2.75 to 3.25 inches |
 | WPLN4138 Rapid-Rate Desktop Charger, 120V (US Plug) |
| PMLN5193 Rapid-Rate Charger with switchmode power supply, 120V (US Plug) |
 | PMLN6588 Universal Multi-Unit Charger, includes 6-inserts, 120V (US plug) |
 | NNTN8460 Charging Insert for Universal Multi-Unit Charger (PMLN6588) |
| PMLN7089 Travel Charger with voltage-regulated vehicular charger adapter, custom charger base, mounting bracket, and coil cord |
Surveillance Accessories and Earpieces
| PMLN6536 2-Wire Surveillance Kit with quick disconnect translucent tube, black |
| PMLN6530 2-Wire Surveillance Kit with translucent tube, black |
| PMLN6445 2-Wire Surveillance Kit with translucent tube, beige |
Earpieces & Mag One™ Accessories
 | PMLN6533 Earbud with combined microphone and PTT |
 | PMLN6535 D-Style Earpiece with microphone and push-to-talk |
| BDN6720 Flexible Ear Receiver (Receive Only) |
 | PMLN6532 Mag One Swivel Earpiece with in-line microphone and push-to-talk |
 | PMLN6534 Mag One Earbud with in-line microphone, push-to-talk and VOX switch |
 | PMLN6531 Mag One Ear Receiver with in-line microphone, push-to-talk and VOX switch |
 | PMLN6537 Mag One Earset with boom microphone and in-line push-to-talk and VOX switch |
 | PMLN6539 Heavy-Duty Headset, over-the-head dual muff with swivel noise cancelling boom microphone (24dB NRR) |
 | PMLN6540 Heavy-Duty Headset, behind-the-head dual muff (hardhat compatible) with noise cancelling boom microphone, in-line push-to-talk and 24dB NRR |
| PMLN6541 Lightweight Temple Transducer Headset with in-line microphone and push-to-talk |
 | PMLN6538 Lightweight Headset, over-the-head, single muff with swivel boom microphone |
 | PMLN6542 Mag One Ultra-Lite Headset, behind-the-head, adjustable with boom microphone and in-line push-to-talk |
 | PMMN4029 Windporting Remote Speaker Microphone, submersible (IP57) |
 | PMMN4013 Windporting Remote Speaker Microphone with 3.5mm audio jack (IP54) |
 | PMMN4092 Mag One Remote Speaker Microphone |
The Motorola CP100d is available in the following models.
Non Keypad (No Display) Analog/Digital Models
- AAH87JDC9JA2AN 136-174 MHz, 5 Watts, 16 Channels
- AAH87YDC9JA2AN 403-470 MHz, 4 Watts, 16 Channels
Non Keypad (No Display) Analog Models
- AAH87JDC9JC2AN 136-174 MHz, 5 Watts, 16 Channels
- AAH87YDC9JC2AN 403-470 MHz, 4 Watts, 16 Channels
Limited Keypad (Display) Analog/Digital Models
- AAH87JDH9JA2AN 136-174 MHz, 5 Watts, 160 Channels
- AAH87YDH9JA2AN 403-470 MHz, 4 Watts, 160 Channels
Limited Keypad (Display) Analog Models
- AAH87JDH9JC2AN 136-174 MHz, 5 Watts, 160 Channels
- AAH87YDH9JC2AN 403-470 MHz, 4 Watts, 160 Channels
Full Keypad (Display) Analog/Digital Models
- AAH87JDF9JA2AN 136-174 MHz, 5 Watts, 160 Channels
- AAH87YDF9JA2AN 403-480 MHz, 4 Watts, 160 Channels
