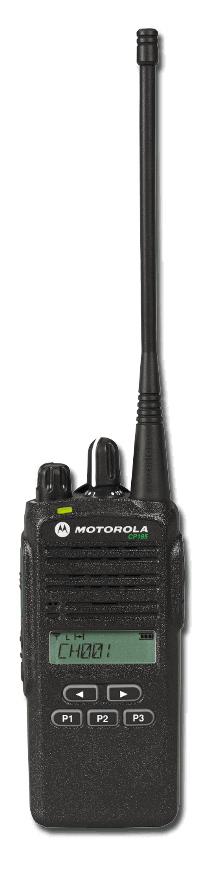

Motorola Solutions
CP185
Ideal for educational institutions, retail and hospitality businesses, service and manufacturing industries, and many other demanding, professional applications, the Motorola CP™185 brings you a robust two-way radio solution. The CP185 has an extensive feature set including built-in voice scrambling for increased privacy, VOX capability for hands-free communication, five programmable buttons and X-Pand™ Technology to provide crisp, clear and strong audio quality even in noisy environments. Combined with the compact, lightweight design of the CP185, you get just what it takes to enhance communication while increasing productivity.
The CP185 is available in a Limited Keypad (LKP) model with a screen. The CP185 MDC comes in an LKP model and a No Keypad (NKP) model, providing the right features for each user.
Performance Characteristics
Frequency Band:
VHF, UHF
Frequency Range:
VHF: 136-174 MHz; UHF: 435-480 MHz
Power Output:
4W (UHF) / 5W (VHF)
Number of Channels/Groups/Zones:
16 Channels
Standard battery chemistry type:
Lithium Ion
Battery life (based on a 5-5-90 duty cycle):
Li-ion battery: Up to 11 hours
NiMH battery: Up to 10 hours
High-Capacity Li-ion battery: Up to 16 hours
Channel spacing:
12.5, 25
Physical Characteristics
Dimensions H x W x D (with standard battery)
4.72 x 2.28 x 1.46 in
Weight (with standard battery)
12.34 ounces
Keypad / Keys
Limited
Display
Full
User Environment
Operating temperature
-22 F to 140 F (-30 C to +60 C)
Mil spec
810 C, 810 D, 810 E, 810 F
IP Standards
IP54
Compact, lightweight design
Makes it easy to handle and use
Built-in simple voice scrambling
Increase the privacy of your conversations
VOX capable
Enables hands-free communication so you can focus on the job at hand
Programmable buttons
5 programmable buttons enable easy, one-touch access to up to 10 user-selected features.
Multi-channel capability
16 channels to support communication among all of your employees
X-Pand™ technology
Provides crisp, clear and strong audio quality even in noisy environments
Adjustable power levels
Adjustable high and low power levels (5 watt: VHF; 4 watt: UHF) help extend battery life
Repeater capability
For use when increased coverage is required
Talkaround capability
Enables communication even when a repeater is not being used
Tighter specifications
-70 dB adjacent channel selectivity provides enhanced rejection of interference from strong signals on adjacent channels so you can get your message through clearly
Military standards
Meets Military 810 C, D, E and F standards to stand up to the most demanding conditions
MDC1200 Capabilities
Provides caller ID, radio in-range check and radio inhibit decode in CP185 MDC No Keypad and Limited Keypad Models
DTMF Capabilities — CP185 MDC No Keypad Model
Provides receive voice selective call, call alert, transmit PTT ID
Quik-Call II: Receive voice selective call, call alert
DTMF Capabilities — CP185 MDC Limited Keypad Model
Provides transmit/receive voice selective call, call alert, transmit PTT ID; Quik-Call II: Receive voice selective call, call alert
Please contact us for more information
 | 8504762J02 Antenna VHF 14CM Sheath Encl |
| HAD9338 Antenna VHF Heliflex 136-162 MHz |
| HAD9742 Antenna VHF Stubby 146-162 MHz |
| HAD9743 Antenna 162-174 MHZ Stubby |
| NAD6502 Antenna VHF 146-174 MHz Whip |
| NAD6579 Antenna 148-161MHz Whip |
| PMAD4012 Antenna VHF 9CM (136-155MHZ) |
| PMAD4013 Antenna VHF 9CM (155-174MHZ) |
| PMAD4014 VHF Helical Antenna, 136-155 MHz (14cm) |
| PMAE4003 Antenna UHF 9CM (430-470MHZ) |
| PMAE4006 Antenna UHF 9CM (470-510MHZ) |
 | PMNN4080 Li-ion High-Capacity 2150 mAh 7.4V Battery |
| PMNN4476 Li-ion 1500 mAh 7.4V Battery |
 | PMNN4082 NiMH 1300 mAh 7.4V Battery |
 | HLN9701 Nylon Carry Case Short w/Belt Loop DTMF |
 | HLN9844 2" Spring Belt Clip |
 | PMLN5334 Soft Leather Protective Case |
 | HLN6602 Universal Chest Pack with Radio Holder, Pen Holder and Velcro-Secured Pouch Motorola Original Universal Chest Pack protects the radio and provides the freedom from holding it during standby communication mode. Universal Chest Pack fits virtually any radio. |
 | HLN9985 Waterproof Bag with Large Strap |
 | RLN4815 RadioPAk Radio/Utility Case The RadioPAk is lightweight and comfortable. Worn around the waist, it keeps radios/phones at hand. It features a separate 6 x 8 inch zippered pouch for other on-the-job necessities. Adjustable woven nylon belt fits both men and women. |
 | EPNN9288 90-134V, Switch Mode Power Supply with NA/LA Country Plug |
| PMLN6371 Multi Unit Charger |
| PMLN5398 Tri-Chemistry Single Unit Charger Base with Switch Mode Power Supply Tri-Chemistry Single Unit Charger Base with Switch Mode Power Supply, (includes PMLN5228 and EPNN9288) |
| NNTN8461 Charger Insert (CP185) |
 | PMLN4444 Earset Boom Microphone with PTT/VOX |
 | HMN9754 Surveillance Microphone (Two-Wire) |
 | PMLN4442 Earbud with In-Line Microphone |
 | PMLN4443 Ear Receiver with In-Line Microphone |
 | RLN4895 Earpiece w/Mic&PTT/Comb (Blk) |
 | WADN4190 Receive-Only Flexible Earpiece with 3.5mm plug This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone. |
| PMLN4620 Receive-Only D-Shell Earpiece This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone. |
| RLN5317 Comfort Earpiece w/Mic and PTT Beige |
 | RLN5318 Comfort Earpiece w/Mic and PTT Black |
 | RLN6230 Extreme Noise Kit. Includes 2 foam earplugs. For high-noise environments. Noise reduction = 24dB. Can be used with Clear Comfortable Earpieces, Black Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories. Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended. |
| RLN6231 Extreme Noise Kit. Includes 2 foam earplugs. For high-noise environments. Noise reduction = 24dB. Can be used with Clear Comfortable Earpieces, Beige Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories. Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended. |
| RLN6232 Low Noise Kit - Clear Acoustic Tube Assembly. Includes 1 clear rubber eartip. For low-noise environments, does not provide hearing protection, Black Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories. Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended. |
 | RLN6241 Low Noise Kit - Clear Acoustic Tube Assembly. Includes 1 clear rubber eartip. For low-noise environments, does not provide hearing protection, Beige Extreme Noise Kits provide extra comfort and/or noise protection for users wearing surveillance accessories. Lightweight, translucent tube attaches to Motorola surveillance accessories to provide flexibility and comfort, which now includes a new quick disconnect adapter. The Quick Disconnect Adapter allows users, especially those in multiple shift operations, to easily remove or alternate acoustic tubes. Clothing clip prevents accessory from being pulled from the ear due to body movement or head rotation. For optimal performance, Extra Loud Earphones are recommended. |
 | RLN6242A Quick Disconnect Acoustic Tube Replacement |
 | RLN4941 Receive-Only Earpiece with Translucent Tube and Rubber Eartip An earphone jack located on the microphone allows the user to receive audio when using this earpiece. The translucent tube provides a more discreet option for those that need to receive messages privately |
 | PMLN4445 Ultra Lightweight Headset w/PTT |
 | PMLN5003 Lightweight Temple Transducer Headset |
 | PMMN4008 Remote Speaker Microphone |
 | PMMN4013 Remote Speaker Mic w/Coil Cord and Swivel Clip Remote Speaker Microphone with Coil Cord and Swivel Clip |
 | PMMN4029A Remote Speaker Microphone with IP57 Rating |
 | AARLN4885 Receive-Only Covered Earbud with coiled cord This earpiece is compatible with all Remote Speaker Microphones with a 3.5 mm audio jack on the head of the microphone. |
The Motorola CP185 is available in the following VHF and UHF models.
Standard Models
VHF
- AAH03KEF8AA7AN 136-174 MHz, 2-5 Watts, 16 Channels, Display, Limited Keypad
UHF
- AAH03RDF8AA7AN 435-480 MHz, 2-4 Watts, 16 Channels, Display, Limited Keypad
Signalling Models
VHF
- AAH03KEC4AB7AN 136-174 MHz, 2-5 Watts, 16 Channels, No Display, No Keypad
- AAH03KEF4AB7AN 136-174 MHz, 2-5 Watts, 16 Channels, Display, Limited Keypad
UHF
- AAH03RDC4AB7AN 435-480 MHz, 2-4 Watts, 16 Channels, No Display, No Keypad
- AAH03RDF4AB7AN 435-480 MHz, 2-4 Watts, 16 Channels, Display, Limited Keypad
